| Captions by: Brian O'Brien, Jr. around 1955. Images by: American Optical Company, around 1955. | Date: 21.05.2014 |
 Fig. A-243.
Todd-AO Synchronizer, 1-picture by 1-sound, with footage counter only.Todd-AO Synchronizer, 1 x 1 with counter (Cat. #80) Todd-AO Synchronizing Machines These synchronizing machines provide for synchronizing picture film with a variety of sound film. Since in the Todd-AO Process the picture film travels at a different rate of speed than the sound film, these machines are designed so that 100 perforations of picture film pass the index point while 64 perforations of sound film pass this point. They can accommodate either the 65mm or the 70mm Todd-AO film and standard 35mm sound film. They are provided with a disconnect between the picture and sound sprockets so that the two can be phased at any step in the operation. The footage counters measure feet of sound film, 64 perforations corresponding to 100 perforations of picture film. |
More in 70mm reading: Back to Todd-AO Catalog • Todd-AO Birth date • How Todd-AO Began • Todd-AO Home • DP70 / Universal 70-35 / Norelco AAII - The Todd-AO Projector Internet link: |
 Fig. A-242.
Todd-AO Synchronizer, 1-picture by 1-sound, front view.Todd-AO Synchronizer, 1 x 1 with counter (cat. #80) This latter 100 perforation unit of length has been given the coined term of the "Gleep". Therefore, the running time of a foot of sound film and a gleep of picture film is the same. For use in music editing, some of the synchronizing machines are provided with running time counters, reading in seconds, as well as the footage counters. These running time counters read to individual picture frames of 1/30 second. |
|
 Fig. A-224.
Side view Todd-AO Synchronizer, 1-picture by 2-sound.Todd-AO Synchronizer, 1 x 2 (Cat. #81) Frame lines are marked and numbered for their respective number of perforations on both the picture and sound sprockets. |
|
 Fig. A-241.
Left side view of Todd-AO Synchronizer, 1-picture by 2-sound, with footage
counter only.Todd-AO Synchronizer, 1 x 2 with counter (Cat. #81) |
|
 Fig. A-225.
Front view of Todd-AO Synchronizer, 1-picture by 2-sound with footage
counter only.Todd-AO Synchronizer, 1 x 2 with counter (Cat. #81) |
|
 Fig. B-39.
Todd-AO Synchronizer, 1-picture by 4-sound with footage counter only.Todd-AO Synchronizer, 1 x 4 with counter (Cat. #86) |
|
 Fig. A-229.
Todd-AO Synchronizer, 2-picture only for synchronizing workprint and cut
negative.Todd-AO Synchronizer, 2 x 0 (Cat. #82) |
|
 Fig. A-227.
Side view of Todd-AO Synchronizer, 2-picture.Todd-AO Synchronizer, 2 x 0 (Cat. #82) |
|
 Fig. B-35.
Side view of Todd-AO Synchronizer, 1-picture by 2-sound with both footage
counter and a running time counter.Todd-AO Synchronizer, 1 x 2 with counter (Cat. #83) |
|
 Fig. B-38.
Front view of Todd-AO Synchronizer, 1-picture by 2-sound with both footage
counter and a running time counter.Todd-AO Synchronizer, 1 x 2 with counter (Cat. #83) |
|

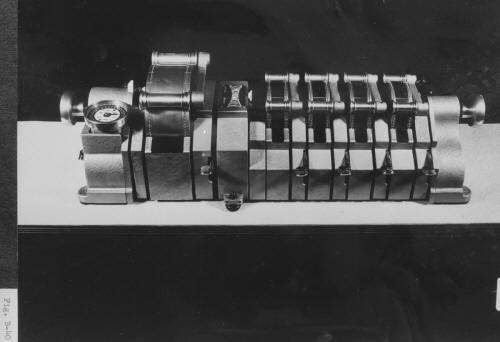

 Fig. B-40.
Side view of Todd-AO Synchronizer, 1-picture by 4-sound with both footage
counter and a running time counter.Todd-AO Synchronizer, 1 x 4 with counter (Cat. #84) |
|

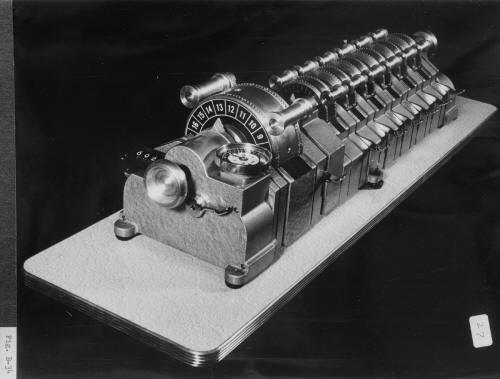

 Fig. B-36.
Front view of Todd-AO Synchronizer, 1-picture by 4-sound with both footage
counter and a running time counter.Todd-AO Synchronizer, 1 x 4 with counter (Cat. #84) |
|
 Fig. B-33.
Side view of Todd-AO Synchronizer, 1-picture by 6-sound with both footage
counter and a running time counter.Todd-AO Synchronizer, 1 x 6 with counter (Cat. #85) |
|
 Fig. B-34.
Front view of Todd-AO Synchronizer, 1-picture by 6-sound with both footage
counter and a running time counter.Todd-AO Synchronizer, 1 x 6 with counter (Cat. #85) |
|

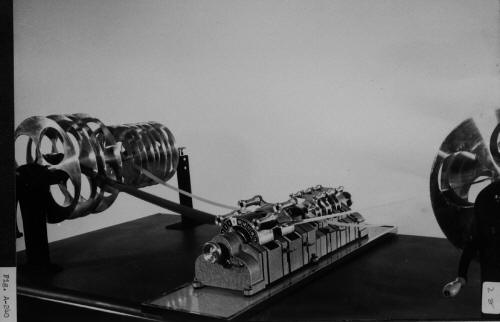

 Fig. A-240.
Todd-AO Synchronizer, 2-picture by 4-sound with footage counter only, shown
mounted on a synchronizing bench with the Todd-AO Synchronizing Bench
Rewinds designed to take multiple film reels.Todd-AO Synchronizer, 2 x 4 with counter (Cat. #79) Todd-AO Synchronizing Bench Rewinds (Cat. #75, #76, #77) |
|
 One picture / one sound sync machine with film loaded on the picture
sprocket. Sync machines were available with up to six sound film sprockets. |
|
Todd-AO Film Edge Numbering Machine |
|
 Fig. A-300.
Overall view of the Todd-AO Edge Numbering Machine, showing the supply and
take up reels, the numbering section and the drying loops.Todd-AO Edge Numbering Machine (Cat. #58) The Todd-AO Film Edge Numbering Machines are designed to number Todd-AO film every "gleep" or at 100 perforation intervals, corresponding to the running time of one foot of sound film. The numbers appear between the perforations so that they are not obscured by magnetic sound striping outboard of the perforations. |
|
 Fig. A-297.
Close-up of the numbering section of the Todd-AO Edge Numbering Machine.Todd-AO Edge Numbering Machine (Cat. #55) |
|
 Fig. A-299.
Close-up of the special gear box on the Todd-AO Edge Numbering Machine with
the eccentric gears to give speed match of numbering block and film.Todd-AO Edge Numbering Machine (Cat. #58) |
|
